Aluminum P8mm IP68 Outdoor LED Display Board Big LED Screens
Quick Detail of P8mm LED Screen:
(1) SMD P8 Aluminum module
(2) High brightness
(3) Light weight and slim design
(4) Big View Angle
(5) IP68 Protect Grade
Description of LED Display:
outdoor led digital billboards pixel include 4mm, 5mm, 6.67mm,8mm,
10mm, 16mm, within these pixels,4mm, 5mm,6.67mm are the most
hot-selling and highest cost-effective series.You can use it on car

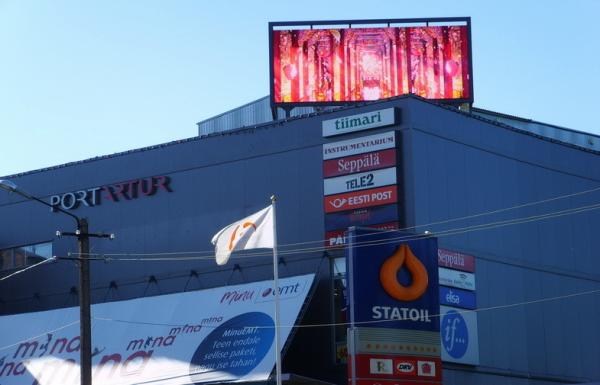

for advertising or fixed in some place as billboard or on building.
Specifications of Outdoor LED Display:
| Model No. | DS-AO-P8 |
| Pixel Pitch | 8mm |
| Module Size | 256*128mm |
| Module Resolution(pixels) | 32*16 |
| Cabinet Size | 1024mm×1024mm |
| Panel Resolution(pixels) | 128×128 |
| Pixel Configuration(RGB) | SMD 3 in 1 |
| Pixel Density(pixels/㎡) | 15625 |
| Brightness(cd/㎡) | 7000 |
| Best Viewing Distance(m) | 6-50 |
| Average Power Consumption(W/㎡) | 300 |
| Waterproof Level | IP65 |
| Drive Method | 1/4scan |
| LED SPEC | 3535 |
| Viewing Angle | 140°(H)/140°(V) |
| Operating Temperature | –40~100 |
| Video Frame Rate(Hz) | ≥ 60HZ |
| Display Refresh Rate(Hz) | ≥ 1000HZ |
| Grey Level(colors) | 16.7million |
| MTBF | ≥50,000 hours |
| Lifespan | ≥100,000Hours |
| Working Voltage | 220V±15% OR 110V±15% |
| Wavelength | R 620-625 G 520-525 B 470-475 |
| Graphics Card | DVI Graphics card |
| Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control System | LINSN |
| Software | LED studio 10.0 |
| Installation | Wall mount, hung and stand structure |
Applications Of Led Screen
LED Display is being an important advertising media for outdoor
events and advertising campaign on basis of its unique advanced
structure feature.It’s known as truck mounted LED display and
trailer mounted LED screen.The products are widely use for
advertising,shows,square,concert, sporting event, festival,
corporate gathering or charitable event,Grand Theater, large song
and dance party, fashion show.
5. Methods for Quality Assurance
a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
6. Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection
(AOI) Equipement.
7. Package
Carton. Fumigation-Free wooden case or Flight case
8. Control System Connection
Dosatronics Controls system
9. Our products have three unique advantagess
(1) Our module shell is aluminum,other companies are plastic.so it
is lighter and thinner.
(2) Our module have strong waterproof and heat-dissipation, the
module can work in the water of 100 degrees or
40 degrees blow zero environment.
(3) Display can work under extremely cold ,heat,humidity and other
extreme environments.
