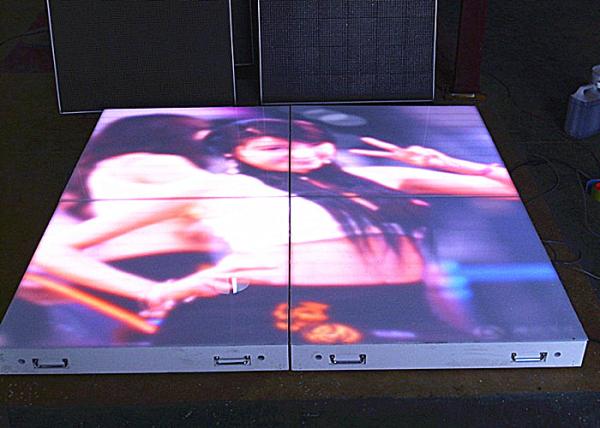

    P6.25mm LED Dance Floor Tiles , Full HD SMD3528 Waterproof LED Screen

    Ask Lasest Price
    Brand Name : Dosatronics
    Model Number : DS-GRFO-P6.25
    Certification : CE/ROHS/FCC/SGS
    Price : negotiation
    Payment Terms : T/T; WU, LC
    Supply Ability : 3,000M2 per month
    Delivery Time : 20 working days after received your payment
    • Product Details
    • Company Profile

    P6.25mm LED Dance Floor Tiles , Full HD SMD3528 Waterproof LED Screen

    P6.25mm LED Floor Tiles for Bar , SMD3528 HD Waterproof LED Screen

    > For real 6.25mm pixel pitch, producing truly amazing and stunning HD quality images.

    > 25,600 pix/m2 pixel density
    > Black faced LED SMDs for rich blacks and better contrast
    > Full-HD Processing with DVI, VGA, HD-SDI inputs
    > Lightweight at just 11kg per cabinet
    > Working state indicators at cabinet backside, showing each cabinet working state without opening the rear cover.
    > The ribs strengthen the construction of cabinet frame, and also can be used as carry handle.
    > Could be made to be waterproof or as dance floor.
    > If with angle regulators on each cabient, the screen could be in shape of concave and convex.

    Origin:Shenzhen China
    HS Code:8528591090
    Production Capacity:2000sq. M/Month


    Visual Parameter

    Pixel Pitch:

    6.25 mm

    Pixel Density:

    25600 pixels/m2

    Pixel Configuration:

    SMD3528 (Black faced)

    Module Dimension:

    250*250 mm

    Cabinets Dimension:

    500*1000 mm

    Cabinets weight:

    11 kg/cabinet

    Cabinet Material:

    Aluminum

    Performance Parameter

    Brightness:

    >1,300nits

    Best Viewing Distance:

    > 6.25m

    Average Power Consumption:

    300 w/m2

    Max Power Consumption:

    680 w/m2

    Scan Mode:

    1/10 scan

    Viewing Angle:

    Horizontal angle: 140 degree, Vertical angle: 140 degree

    Gray Scale Level:

    14 bit

    Refresh Rate:

    >1,400Hz

    LED Lifetime:

    >50,000 hours

    Environment Parameter

    Input Voltage:

    200~240vAC, 50/60Hz

    Operating Temperature:

    -20°C~60°C

    Operation Humidity:

    10%~90%RH

    Ingress Protection:

    IP31

    Control Parameter

    Control System:

    NOVA / LINSN

    Compatible video interface:

    YC, VGA, DVI, YUV, SDI, RGB, CVBS, HD-SDI


    Applications

    night club, entertainment events,


    competitive advantage

    1. Good Sevice , 24/7 online support service.
    2. Good Quality For Every LED Display Product.
    3. Good Price.
    4. High Quality Driving IC .
    5. Red,Green And Blue LED Chips Incorporated Encapsulation ,Better Perspective.
    6. Two Years Maintenance Service With Free.
