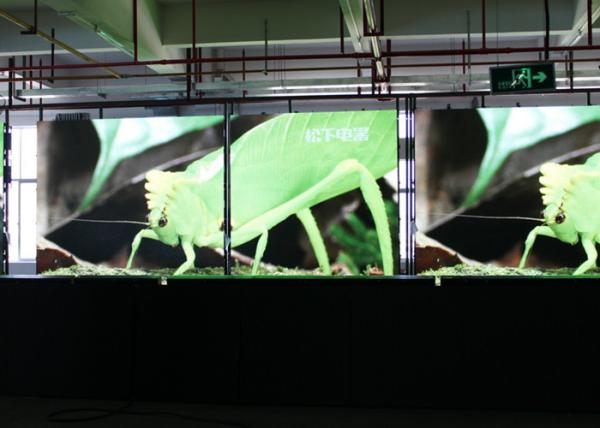

Outdoor LED Screen SMD HD Video P6mm LED Display Fixed Installation
HD Video
Specifications:
Model No. | DS-AO-P6 |
Pixel Pitch | 6mm |
Module Size | 192*192mm |
Module Resolution(pixels) | 32*32 |
Cabinet Size | 768mm×768mm |
Panel Resolution(pixels) | 128×128 |
Pixel Configuration(RGB) | SMD 3 in 1 |
Pixel Density(pixels/㎡) | 27777 |
Brightness(cd/㎡) | 7000 |
Best Viewing Distance(m) | 6-50 |
Average Power Consumption(W/㎡) | 300 |
Waterproof Level | IP65 |
Drive Method | 1/4scan |
LED SPEC | 3535 |
Viewing Angle | 140°(H)/140°(V) |
Operating Temperature | –40~100 |
Video Frame Rate(Hz) | ≥ 60HZ |
Display Refresh Rate(Hz) | ≥ 1000HZ |
Grey Level(colors) | 16.7million |
MTBF | ≥50,000 hours |
Lifespan | ≥100,000Hours |
Working Voltage | 220V±15% OR 110V±15% |
Wavelength | R 620-625 G 520-525 B 470-475 |
Graphics Card | DVI Graphics card |
Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
Control System | LINSN |
Software | LED studio 10.0 |
Installation | Wall mount, hung and stand structure |
Quick Detail:
(1) SMD P6 Aluminum module
(2) High brightness
(3) Light weight and slim design
(4) Wall mount, hung and stand structure
(5) IP68 Protect Grade
Description:
Dosatronics LED displays are high tech product with our own patent.
Especially outdoor LED display for advertising has high brightness,
high contrast, high refresh rate…All are popular both in domestic
and overseas market. We adopt unbeatable product stability through
strict Quality Control System. It is very correct for you to choose
our company, our LED display products. All of them has 3 years
quality warranty since all component are extremely good. They can
bring you large fortune in a very short time.
Applications:
Our Full Color SMD Outdoor P6 LED Display is mainly for outdoor
usage, such as commercial advertising,
mobile media, night club, entertainment events, business
establishments, can install in banks, stock exchange
centers, bus station, schools, telecommunications, customs,
stadiums, studio, shopping, malls, railways,
airports, harbors, etc.
Methods for Quality Assurance
a. Aging
1) 100% fully test
2) Condition: 72 hours with 256 grey level
b. Vibration Testing
Condition: 3-5 mins up and down in 5mm range
Factory Equipment
Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection
(AOI) Equipement.
Control System Connection
Dosatronics Controls system
Our products have three unique advantagess
(1) Our module shell is aluminum,other companies are plastic.so it
is lighter and thinner.
(2) Our module have strong waterproof and heat-dissipation, the
module can work in the water of 100 degrees or 40 degrees blow zero
environment.
